- the characteristics of the Patent:
- the ribbed Cap: in child-resistant "
CRC",taking off by "
Push Down While Turning"
- the Actuator: in snap-in(can't be pull out from the pump)
- the ribbed Closure: in snap-on 18mm
- the nasal sprayer

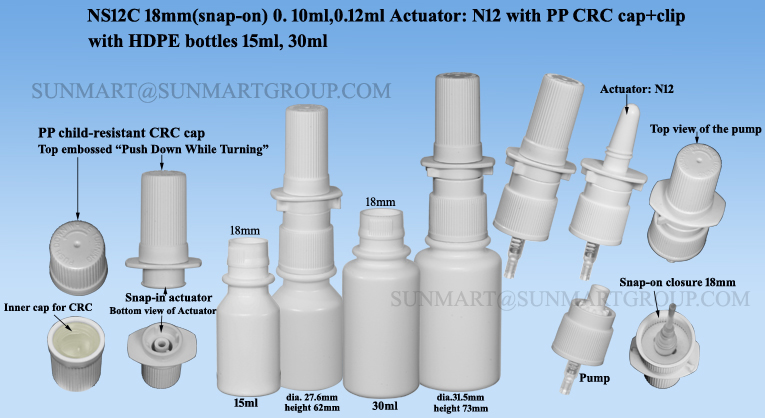

NS12C 18/410 ratched closure screw-on dosage: 0.10ml,0.12ml Actuator:
N12 in snap-in with PP child-resistant overcap+plastic locking clip
- the HDPE bottle 15ml neck: 18mm snap-on
the bottle's dimension: dia.27.6mmXheight 62mm
- the HDPE bottle 30ml neck: 18mm snap-on
the bottle's dimension: dia.31.5mmXheight 73mm

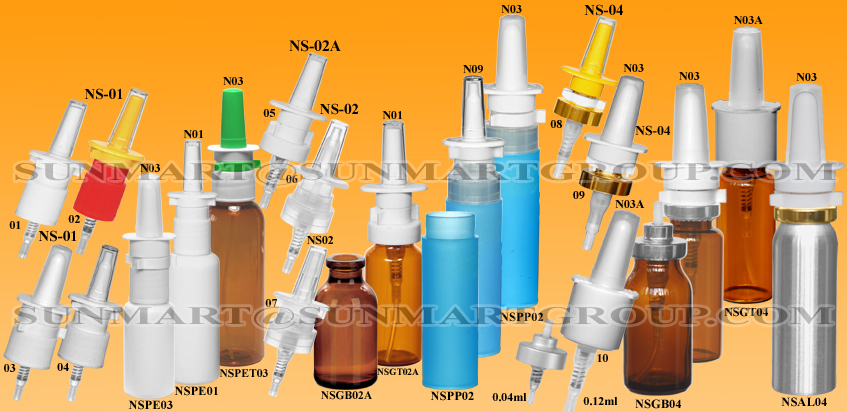

1. the nasal sprayers
NS-01 in screw-on version with Actuators: "
N01","
N09" with PS dustcap, "
N03"with PP dustcap
- Closures: 15/410,15/415 ribbed dosage:0.05ml
- Closures: 17/410,17/415,18/410,18/415,20/410 ribbed dosage:0.10ml, 0.12ml
- Closures: 24/410,28/400 ribbed dosage:0.10ml, 0.12ml
2. the nasal sprayers
NS-02 in snap-on version with Actuators: "
N01","
N09" with PS dustcap, "
N03"with PP dustcap
- the PP special snap-on closure: dia.20mm dosage:0.10ml, 0.12ml
This special snap-on closure dia.20mm for
NS-02 is used for our PP bottles
NSPP02.
3. the nasal sprayers
NS-02A for standard neck in crimp-on 20mm with Actuators: "
N01","
N09" with PS dustcap, "
N03"with PP dustcap
- the PP standard snap-on closure: dia.20mm dosage:0.10ml, 0.12ml
This standard snap-on closure dia.20mm for
NS-02A is used for regular neck dia.20mm of glass bottles and glass tubes
NSGB/GT02A.
4. the nasal sprayers
NS-04 in crimp-on version with PS or PP dustcap + Actuators: "
N01","
N03","
N09" for
NSGB/GT/AL04
- metal ferrule: dia.15mm dosage:0.04ml,0.05ml,0.08ml,0.10ml and 0.12ml
- metal ferrule: dia.18mm, 20mm dosage:0.04ml,0.05ml,0.08ml,0.10ml and 0.12ml
5. the actuator: "
N03A" with PP dustcap of the nasal sprayers
NS-04 in crimp-on version is used only for metal ferrule:dia.20mm of
NSGB/GT/AL04
- metal ferrule: dia.20mm dosage:0.04ml,0.05ml,0.08ml,0.10ml and 0.12ml

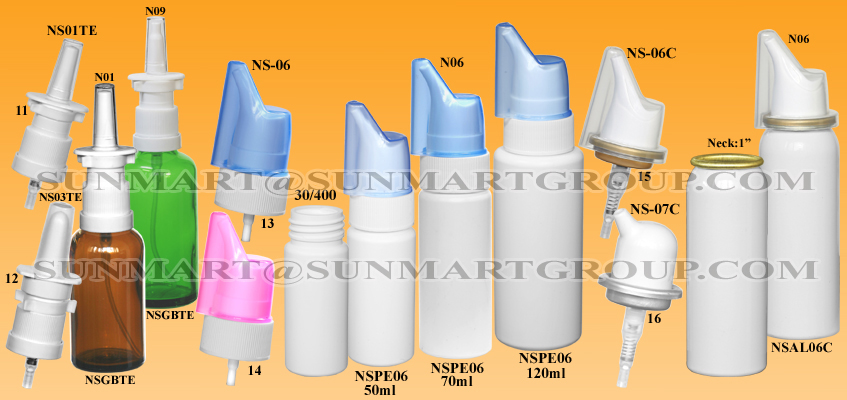

6. the nasal sprayers NS01TE 18/410(DIN18) dosage:0.10ml, 0.12ml with the actuator: "N01","N09"+PS dustcap and plastic locking clip
the nasal sprayers NS03TE 18/410(DIN18) dosage:0.10ml, 0.12ml with the actuator: "N03"+PP dustcap and plastic locking clip
7. the nasal sprayers NS-06 in screw-on version with Actuator: "N06" + PP cap
Closure: 30/400 ribbed dosage:0.10ml and 0.12ml
8. the nasal sprayers NS-06C in metal aerosol ferrule with Actuator: "N06" + PP cap
Ferrule's size: 1" dosage:0.10ml and 0.12ml
9. the nasal sprayers NS-07C in aerosol metal ferrule with the actuator: "N07"
Ferrules' sizes: 1" dosage:0.10ml and 0.12ml
10. the combination nasal spray units NSPE06
- HDPE bottle 50ml neck: 30/400 with the nasal sprayer NS-06+PP cap
the bottle's dimension: dia.34.3mmXheight 92mm
- HDPE bottle 70ml neck: 30/400 with the nasal sprayer NS-06+PP cap
the bottle's dimension: dia.34.3mmXheight 102mm
- HDPE bottle 120ml neck: 30/400 with the nasal sprayer NS-06+PP cap
the bottle's dimension: dia.41.5mmXheight 124mm
